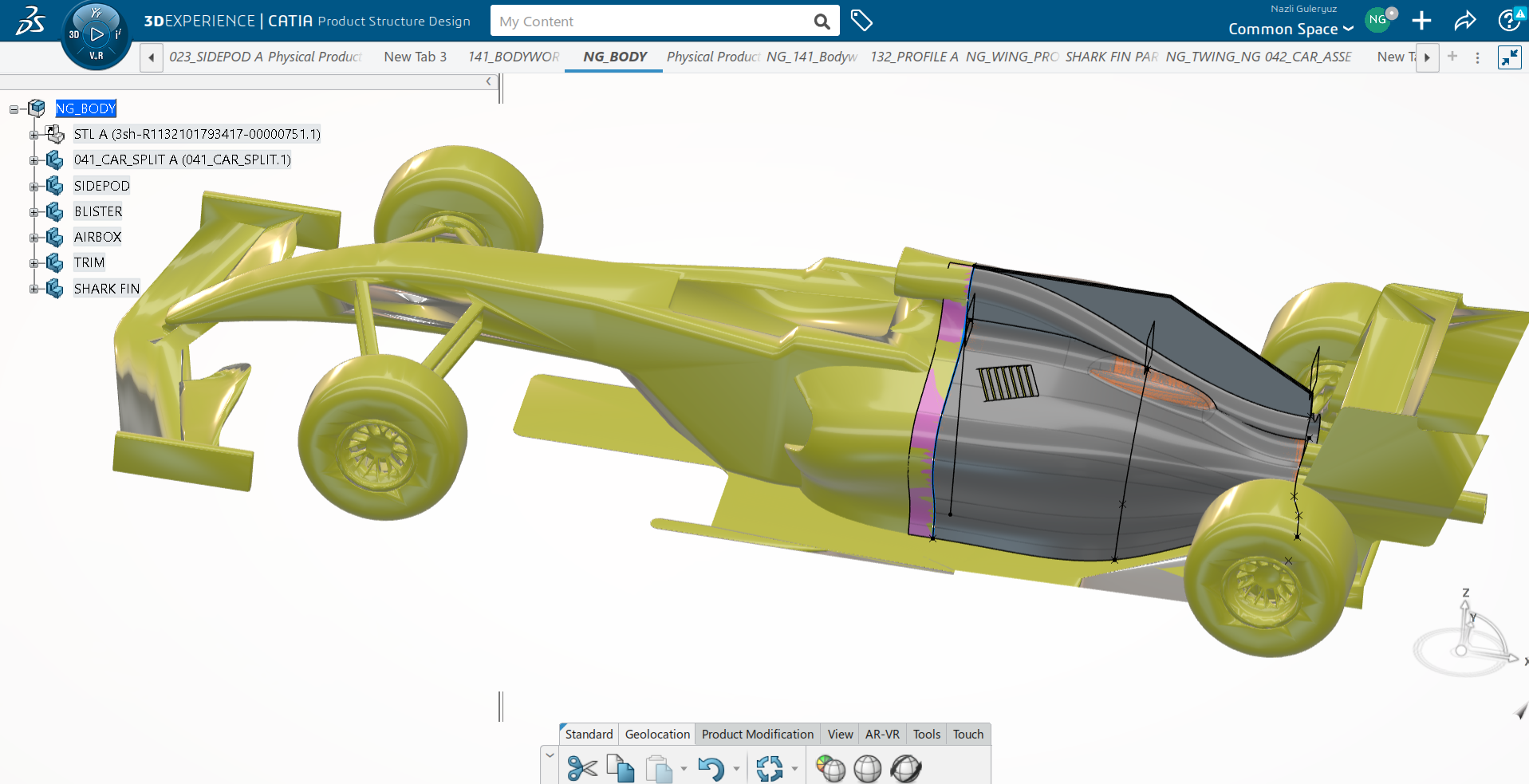

I designed the bodywork of an F1 race car that includes airbox,sidepod with Louvre detailing as tightly as possible for more downforce on CATIA V6
For the rear end, the last side pod cross section, outlines were drawn around critical components such as exhaust exit, we can enlarge or minimize that opening depending on cooling requirements of the track conditions
Sidepods were created with sections and extrusions.
To create Louvres I prepared an assigned area with outlines and created a cross section to sweep
