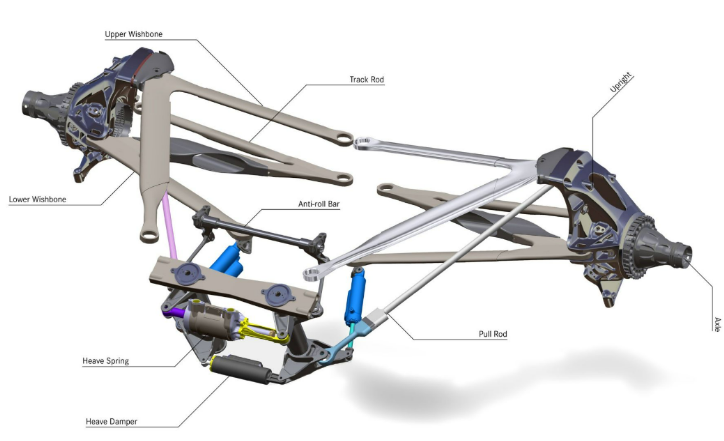

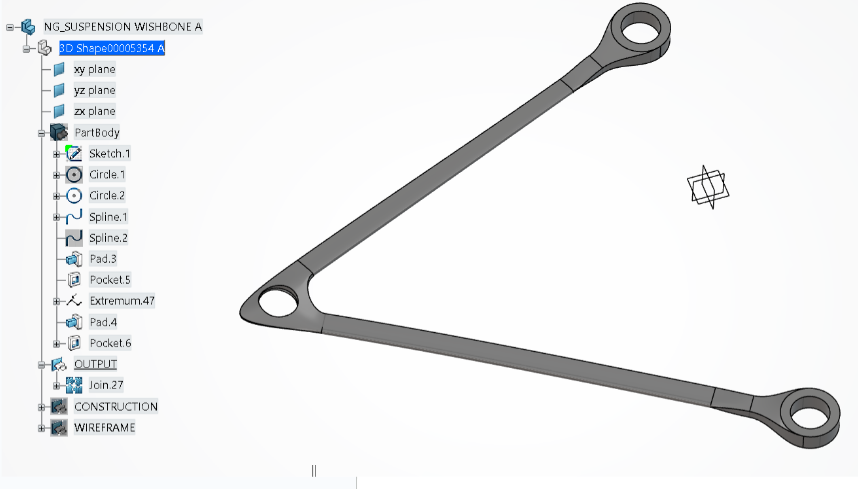

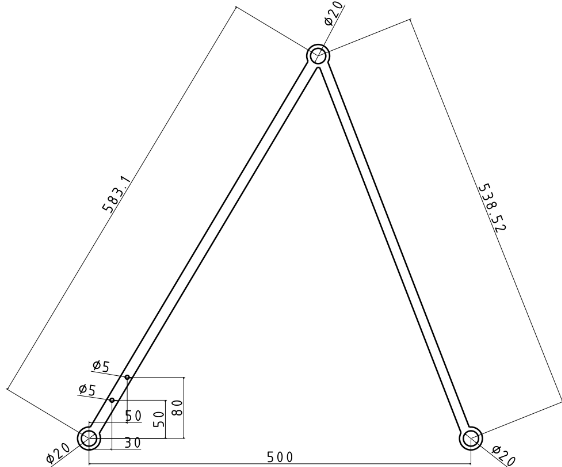

I designed a suspension that respected the 2D measurements, to make it more aerodynamic I made the arms’ profile as wings. I was inspired by this Mercedes F1 suspension 3D along with online pictures

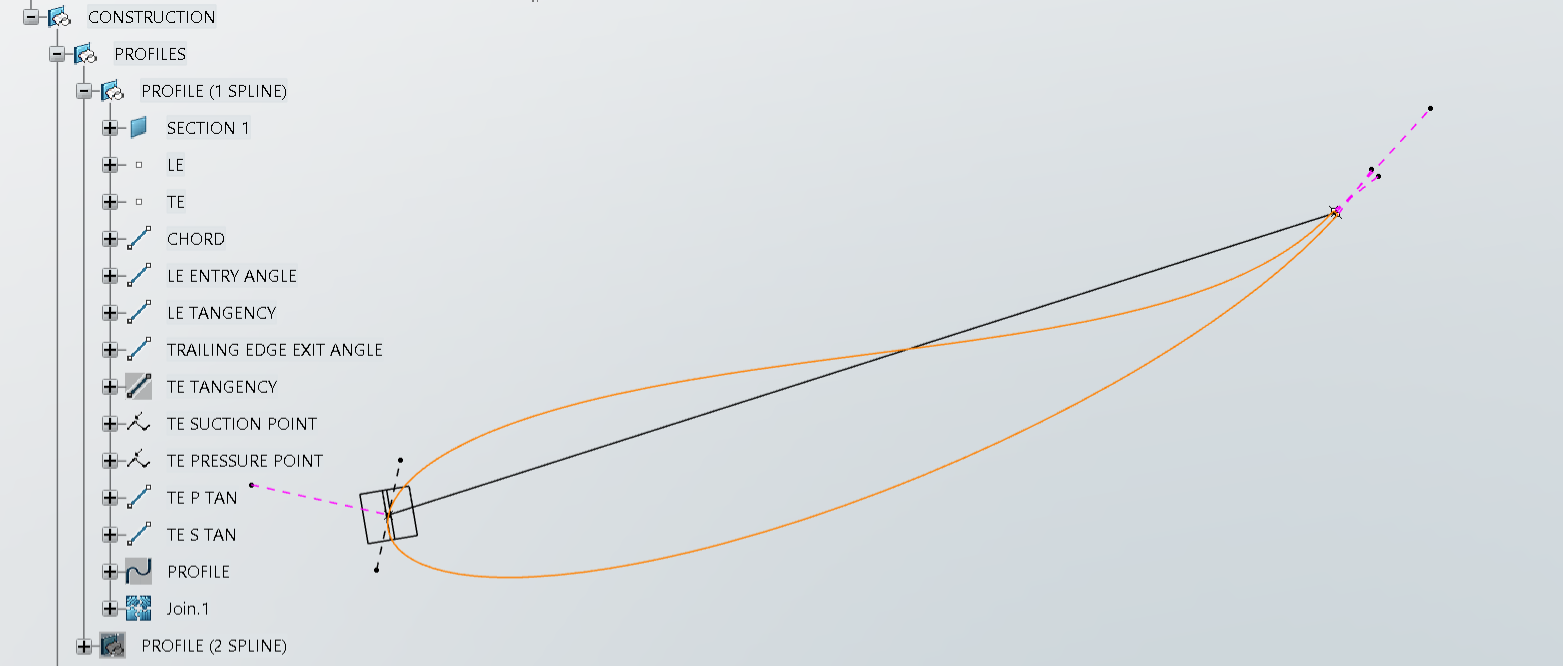

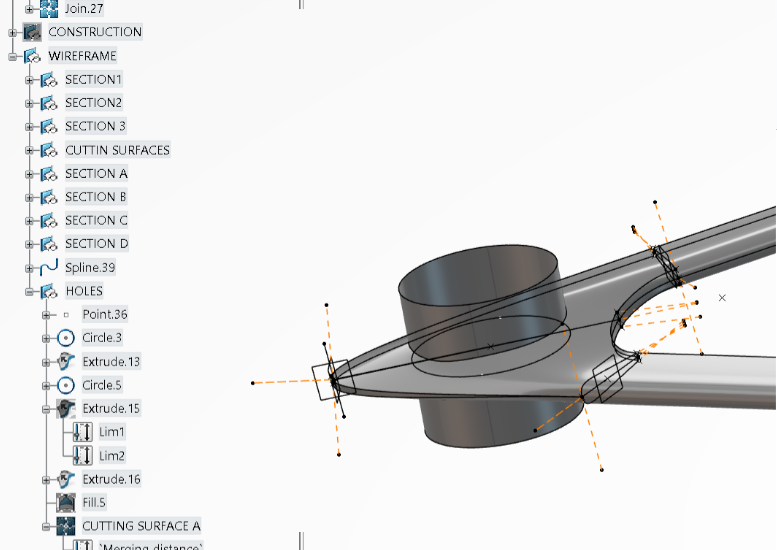

-A section was modeled with two wing cross sections.

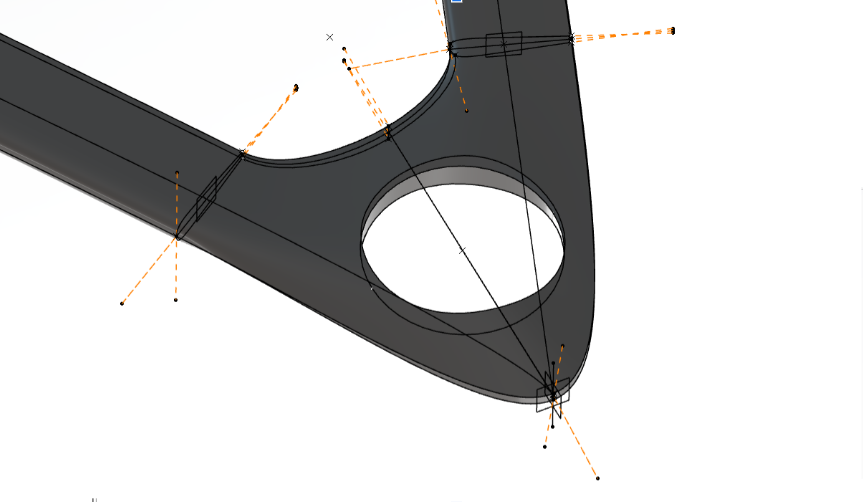

-Cut on the tip was done through trim of an extrusion
