Aero Surfacing of F1 Front Nose with CATIA V6 3D Experience

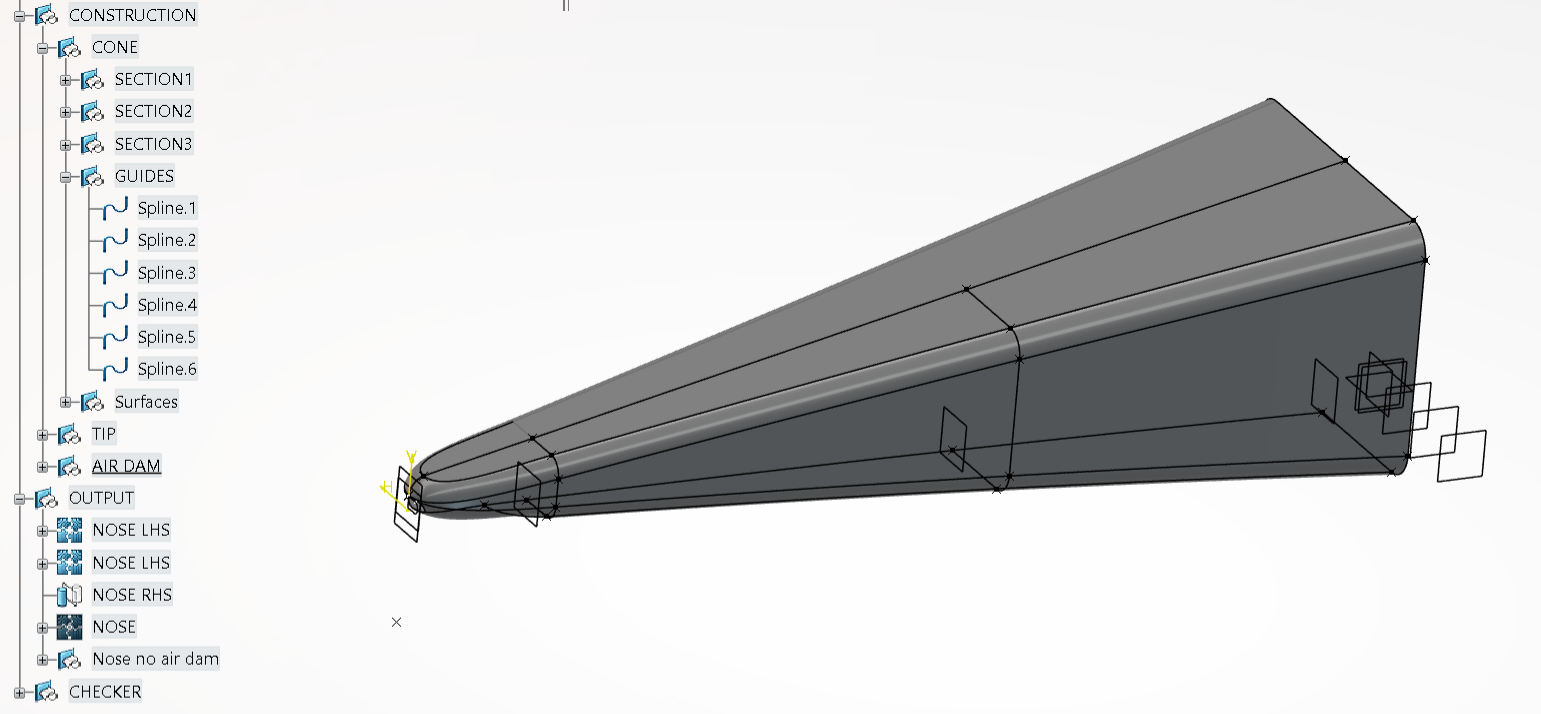

Nose tip and Cone were designed separately. Cone had 3 sections and tip met in to a narrow section though strategic wireframe and tangency surfaces strategy.
Currently working on a front wing, I will have to resume in November with an external CATIA V6 license. Here is the progress:

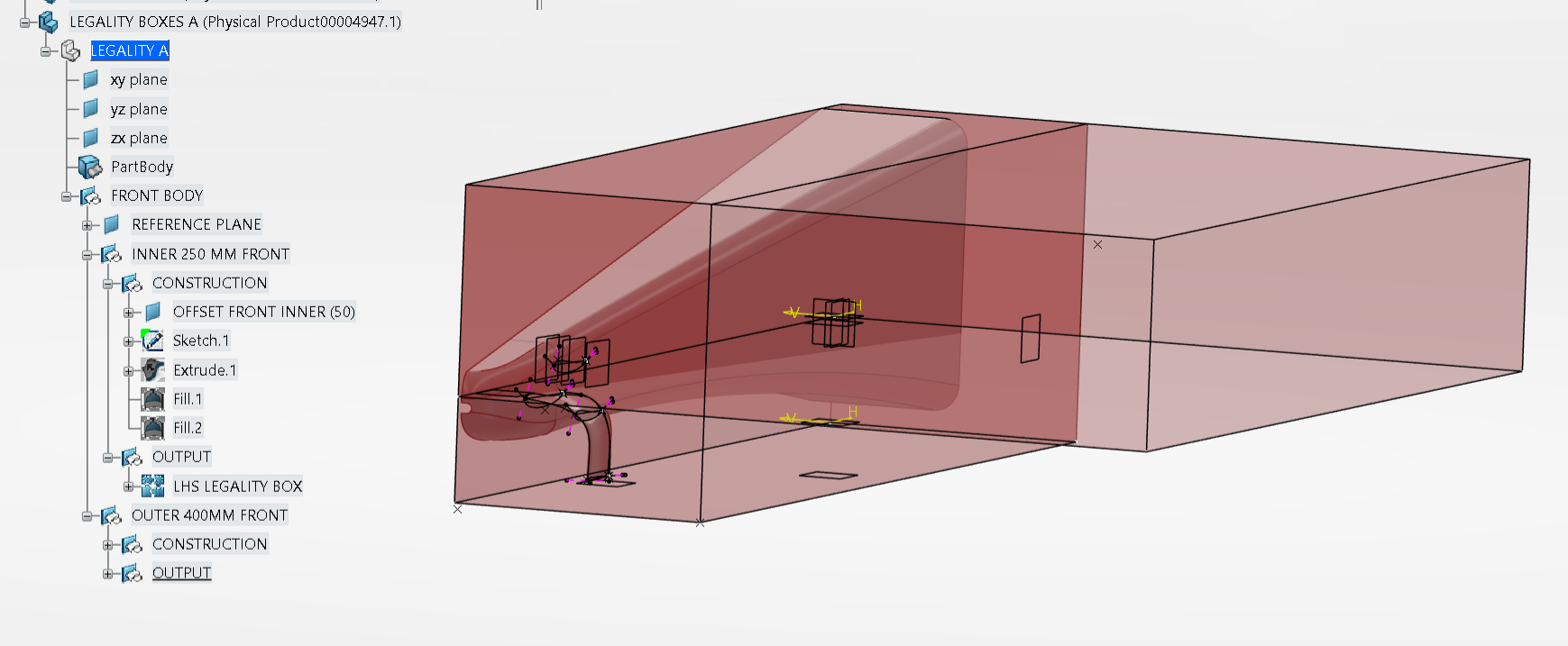

-I created legality boxes according to 2008 FIA regulations.

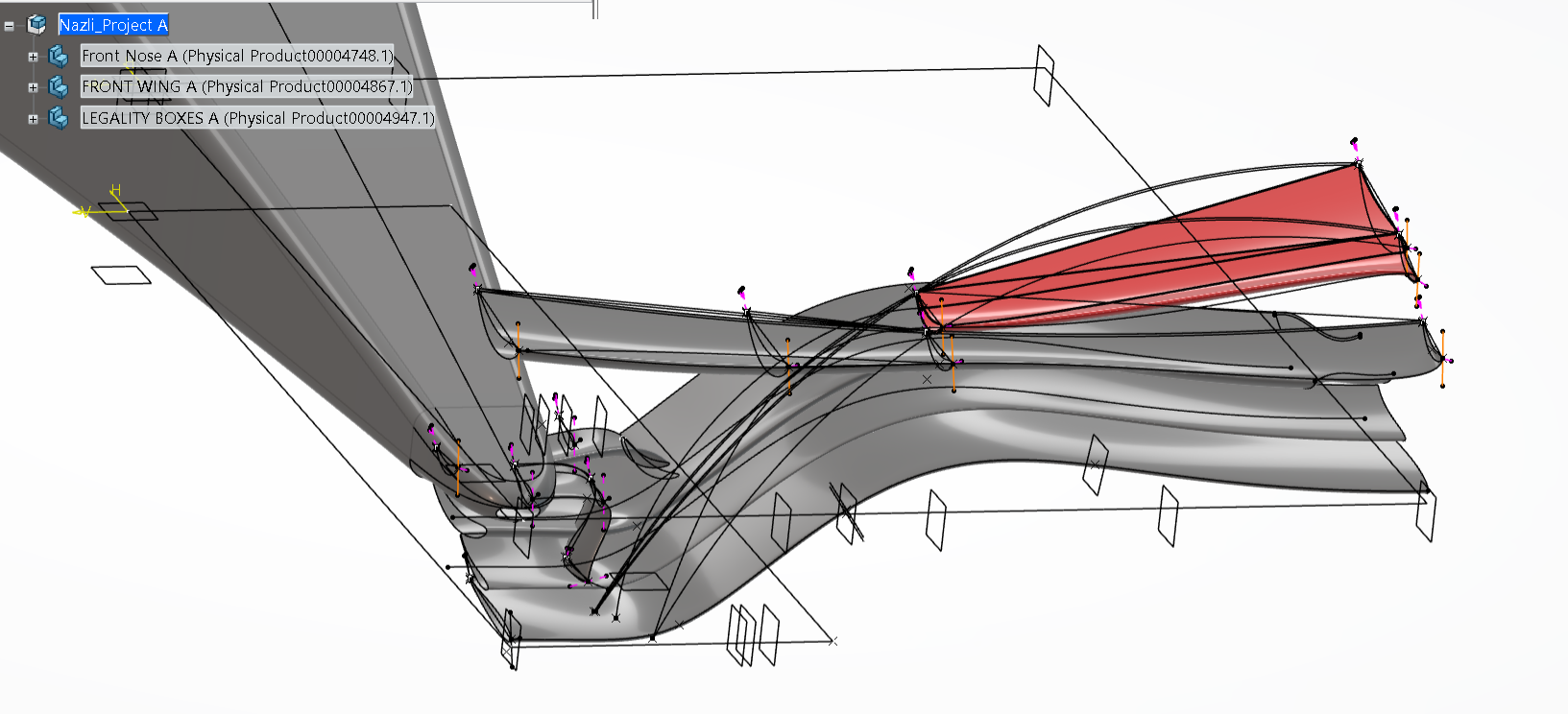

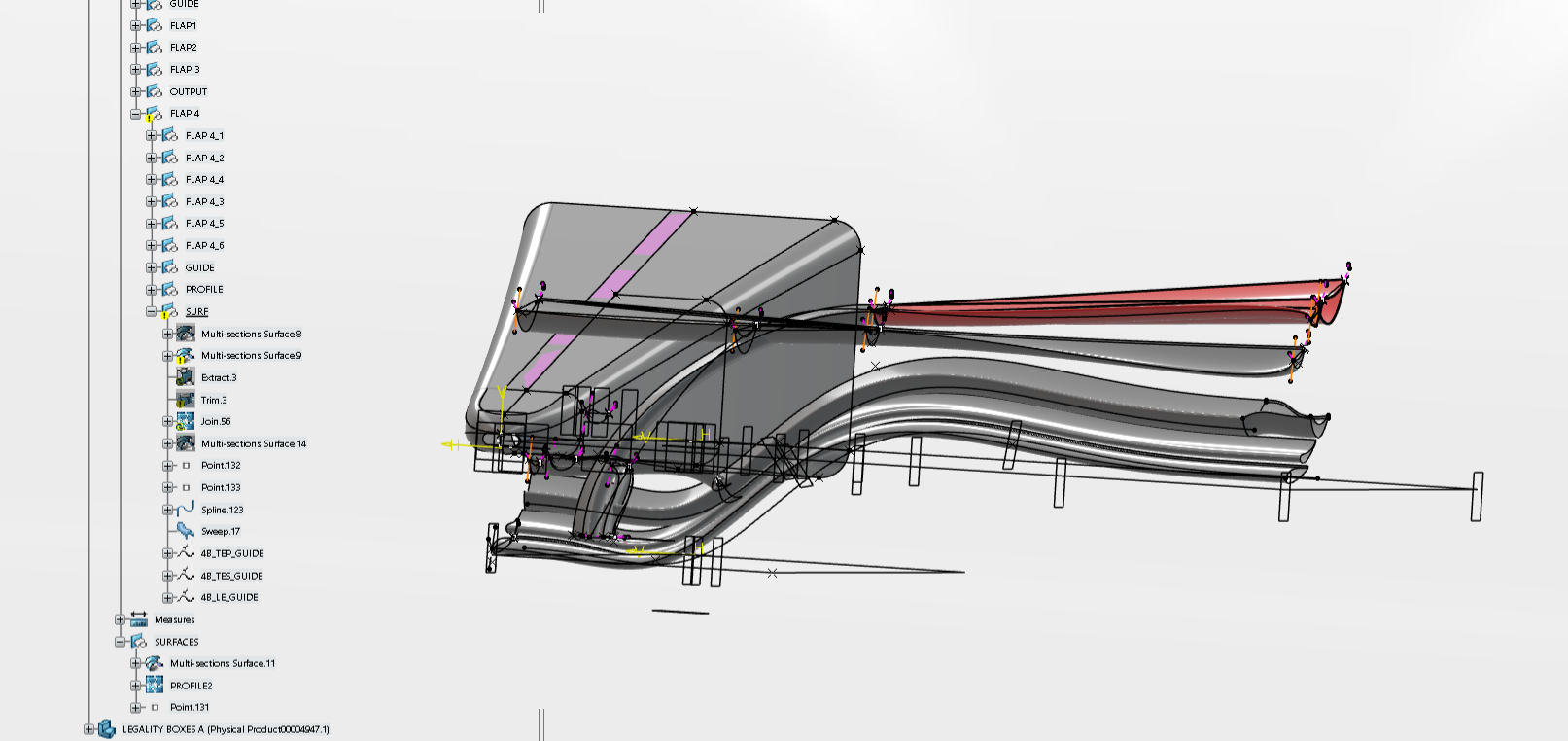

-Modelled the lower wing and connection to nose as well as the air dam, currently working on upper front wing and end plates
-My goal is to create MP4-23
